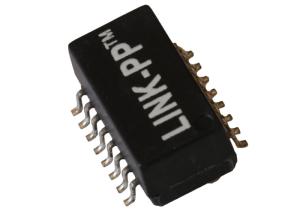

XFATM9B 10/100 Base Magnetic Module FE LAN Transformer 16Pins
| Single Port Transformer | 10/100 base-t transformer | 1:1 Turn Radio | SMD Mounting |
Description:
XFATM9B 10/100 Base Magnetic Module FE LAN Transformer 16Pins
10/100Base-T Transformer XFATM9B
10/100Base-T Transformer Modules
10/100Base-T Ethernet Single Port Transformer Module

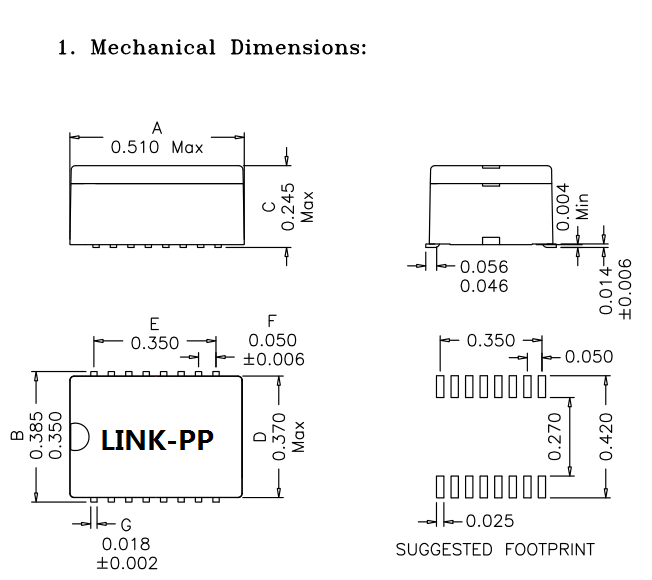

| Application | LAN ETHERNET(PoE&NON PoE) |
| AutomDX | YES |
| Comment | RoHS Compliant LPXXXXNL |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Construction | TRANSFER MOLD |
| Cores Per Port | 4 |
| Number of Ports | Single |
| PCB | NO PCB |
| Package | SMT |
| Package Height (Inches) | 0.225 or other |
| Package Height (mm) | 5.715 or other |
| Package Length (Inches) | 1.12 or other |
| Package Length (mm) | 28.448 or other |
| Package Width (Inches) | 0.63 or other |
| Package Width (mm) | 16.002 or other |
| RoHS Compliant | YES-RoHS-6 |
| Speed | 10/100/1000BASE-TX |
| Temperature | 0 TO 70/-40 To +85 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| Main P/N | LP1102NL, etc |

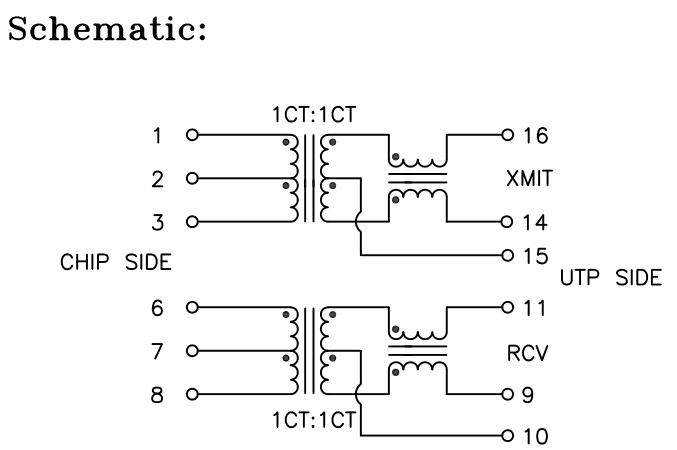

Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
Chip side to Line side
