L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer

Name: L22T0013 1000baset Magnetics Module Single Port SMD 24pins Transformer
Brand: LINK-PP
Price: 1 USD

Quality L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer wholesale

Brand Name : LINK-PP

Model Number : L22T001-3

Certification : UL,RoHS,Reach,ISO

Place of Origin : China

MOQ : 400/2000/10K/25K

Price : supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Item : L22T001-3

Ethernet : 1000 Base-T

Cross rf : L22T001-3=>LP5006ANL

pins : 24

Files : PDF / Datasheet / 3D / IGS / Step /Stp

Samples : Available 4 PCS

port : Single

Contact Now

L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer

1.Single Port Gigabit Ethernet Transformer LP5006ANL

2.Cross rf L22T001-3 Pin to Pin Compatible

3.1000 Base-T Magnetics Modules Ethernet application

Application:

1.Rugged computers

2.Cable Assemblies

3.Data Output Modules

4.PCI Products

Pin to pin L21N002-0
Series	Transformer	REACH Compliant:	Yes
Number of Ports:	SIngle / Dual	EU RoHS Compliant:	Yes
Manufacturer	LINK-PP	China RoHS Compliant:	Yes
Speed:	1000 Base-T	Number of Functions:	1
Package:	SMD	Turns Ratio (Np:Ns)	1:1; 1:1
PIN	24	Status:	Active

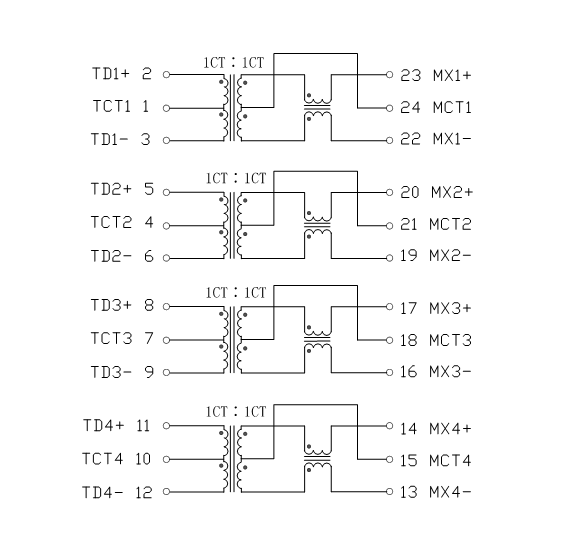

Turn Ratio(±2%):	TX=1CT:1CT RX=1CT:CT
Inductance OCL:	350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss:	-1.0dB MAX @ 1-65MHz
Return Loss:	-20dB MIN @ 1-10MHz
	-16dB MIN @ 10-30MHz
	-12dB MIN @ 30-60MHz
	-10dB MIN @ 60-100MHz
Cross talk:	-40dB MIN @ 1-30MHz
	-35dB MIN @ 30-60MHz
	-30dB MIN @ 60-100MHz
Common Mode Rejection:	-30dB MIN @ 1-50MHz
Common Mode Rejection:	-20dB MIN @ 50-150MHz
Hipot Test:	1500Vrms MIN
Operating Temperature Range:	0℃ TO 70℃. / -40℃ TO 85℃.

NOTES:
1.Designed to support application
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias .
4.Maximum Reflow Temperature is 250℃,5 Sec.

5.Meets IEEE 802.3 specification
6.UL Certification: File Number E484635

7.Compliance with ROHS requirements

8.100% Tested (Not Just Batch Tested)

L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer

Product Tags:

100/1000base-t filter

100base-t transformer
