Gangjack 1x8 Port Modular Rj-45 8p8c JX8064D688ANL / LPJ86404AENL 90 Degree

Brand Name : LINK-PP

Model Number : JX8064D688ANL

Certification : ISO9001,SGS,REACH,UL,RoHS

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.11-$12

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Delivery Time : Stock

Packaging Details : Tray

Part Number : JX8064D688ANL

LATCH : DOWN

PoE RATING : NON-PoE

Mounting : Right Angle

SPEED : 100BASE-TX

ROHS COMPLIANT : YES-RoHS-6

Contact Now

RJ45 1X8 CONNECTOR WITH 10/100 BASE-T INTEGRATED MAGNETICS & WITH EMI SPRING FINGER & WITH LED

JX8064D688ANL 1x8 Tab-Down RJ45 Jack Material Specification:

  1. Shield Material: Brass
  2. Shield Finish: 10-20µ inches thick Nickel over 10-20µ inches thick nickel
  3. Contact Material: Phosphor Bronze
  4. Contact Plating Area: Nickel underplating and selective gold plating 30µ inches
  5. Contact Solder Area: Tin matte finish
  6. Housing Material: Thermoplastic
  7. Housing Specification: UL 94 V-0
  8. Housing MSL: 1

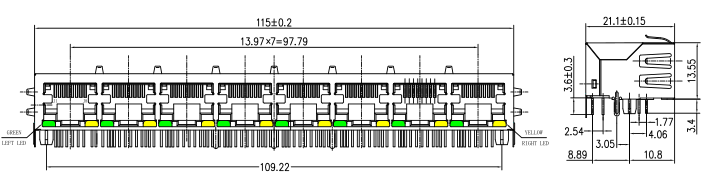

Gangjack 1x8 Port Modular Rj-45 8p8c JX8064D688ANL / LPJ86404AENL 90 Degree

Parameter Specification
Part Number JX8064D688ANL
Number of Ports 1×8
Mounting Type THT (Through-Hole Technology)
Latch Orientation Down
LED Option Green & Yellow (L: Green, R: Yellow)
Contact Mating Area Plating Gold, 30 µin
Operating Temperature -40°C to +85°C

Electrical Specification @25℃

Parameter Specification
Turns Ratio (±2%) TX = 1CT:1CT, RX = 1CT:1CT
OCL 350 µH Min @ 100 kHz, 0.1 V, 8 mA DC Bias
Insertion Loss -1.0 dB Max (1–100 MHz)
Return Loss (dB Min) 1–30 MHz: -16 dB 30–60 MHz: -12 dB 60–80 MHz: -10 dB
Crosstalk (dB Min) 1–30 MHz: -40 dB 30–60 MHz: -35 dB 60–100 MHz: -30 dB
CMR (dB Min) 1–50 MHz: -30 dB 50–130 MHz: -20 dB
Hi-Pot Test 1500 V DC Min

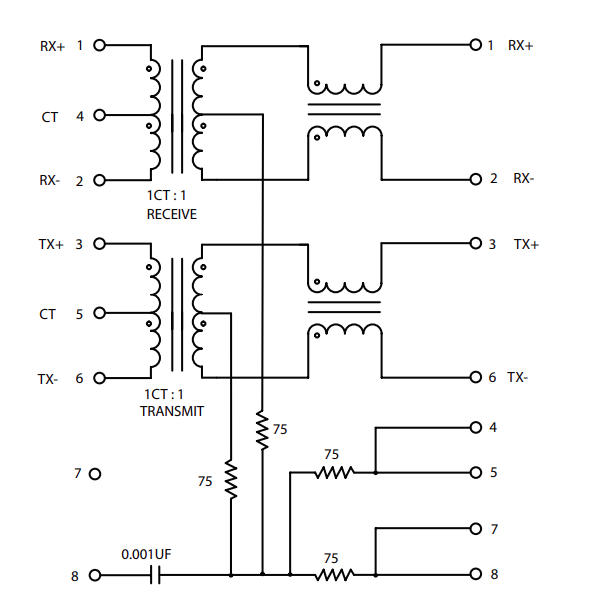

JX8064D688ANL Schematic
