1-1840727-8 Gigabit Magnetic RJ45 Jack 1000BASE-T Tab Up G/GO Leds

Name: 118407278 Gigabit Magnetic RJ45 Jack 1000BASET Tab Up GGO Leds
Brand: LINK-PP
Price: 1 USD

Quality 1-1840727-8 Gigabit Magnetic RJ45 Jack 1000BASE-T Tab Up G/GO Leds wholesale

Brand Name : LINK-PP

Model Number : 1-1840727-8

Certification : RoHS Compliant

Place of Origin : China

MOQ : 50/500/1000

Price : Negotiable

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : 3-5 days

Packaging Details : 50pcs/tray,1200pcs/carton

Original : 1-1840727-8

Speed : GIGABIT

Operating Temperature : 0 to 70

Samples : Free Available

Port Configuration : Tab Up

Lifecycle : More than 20 Years

Mounting Type : Through Hole Mount

EMI Tabs : Yes

Contact Now

1-1840727-8 Gigabit Magjack Specifications:

Product Type	1-1840727-8 Magnetic RJ45 Connector with LEDs
Number of Ports	1X1
Height Profile	Standard
Product Status	Active
Speed	1000 BASE-T
Number of Ports	Single Port
Orientation	90° Angle (Right)
Mounting Type	Through Hole
PoE Rating	N/A
Latch	Up
Shield EMI Tabs	With
LED Color	Green/Green&Orange Leds
PCB Mount Angle	SIDE ENTRY
Operating Temperature	0°C ~ 70°C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"

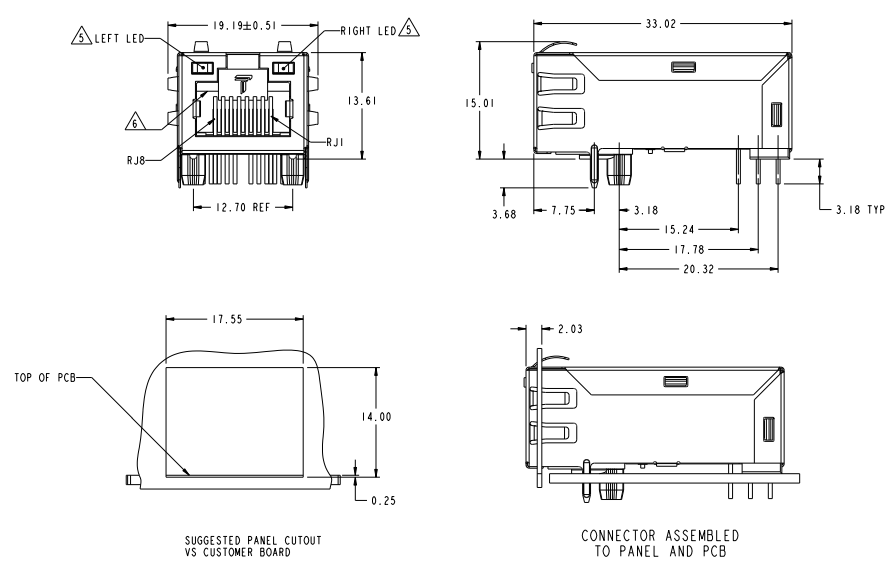

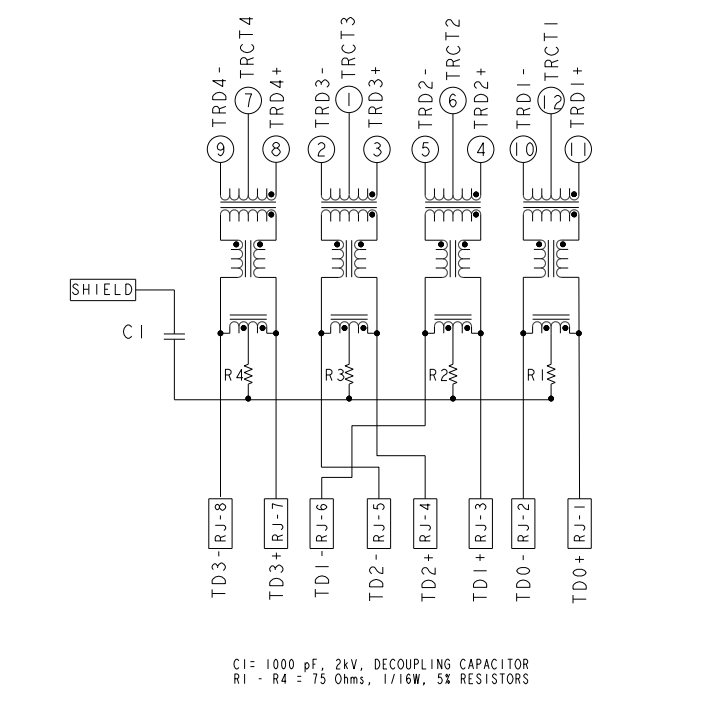

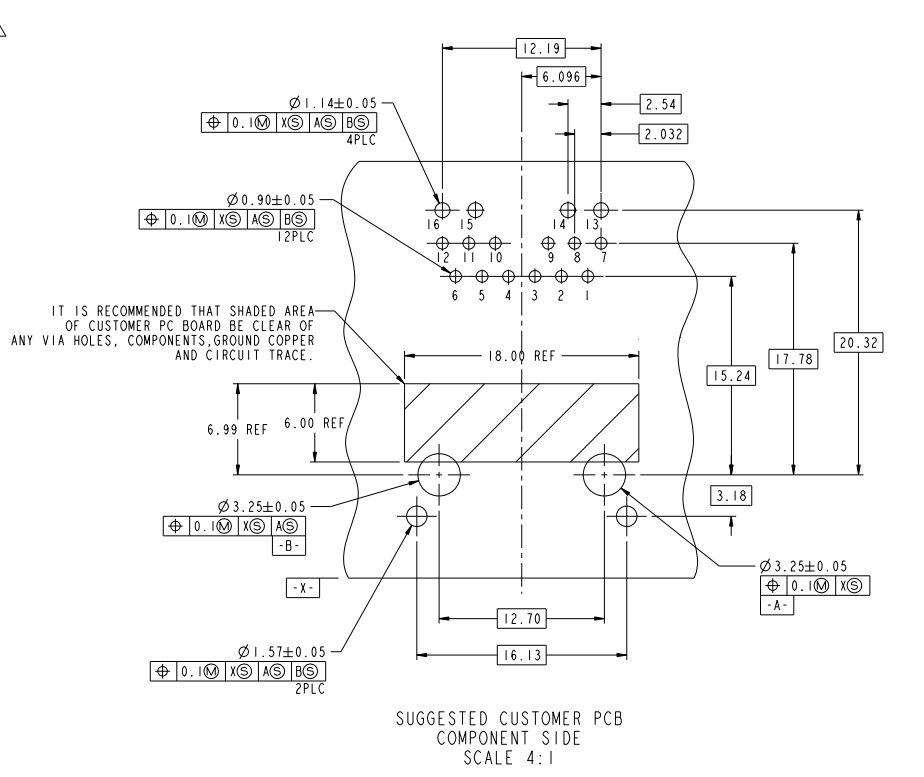

1-1840727-8 Gigabit Magnetic RJ45 Jack Datasheet:

1-1840727-8 Gigabit Magnetic RJ45 Jack 1000BASE-T Tab Up G/GO Leds

1-1840727-8 Similar RJ45 Magjack Part Number:

1-1840052-1	1-1840012-2	1-1840026-1
1-1840052-9	1-1840053-4	1-1840055-4
1-1840326-4	1-1840326-7	1-1840418-1
1-1840419-3	1-1840472-4	1-1840484-8
1-1840498-3	1-1840578-9	1-1840581-3
1-1840581-7	1-1840637-7	1-1840648-4
1-1840661-7	1-1840727-3
