1000BASE-T 1-1840863-4 2x8 Ports Gigabit PoE+ RJ45 Connector

Name: 1000BASET 118408634 2x8 Ports Gigabit PoE RJ45 Connector
Brand: LINK-PP
Price: 0.06 USD

Quality 1000BASE-T 1-1840863-4 2x8 Ports Gigabit PoE+ RJ45 Connector wholesale

Brand Name : LINK-PP

Model Number : 1-1840863-4

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : 3-5 days

Packaging Details : T&R

Speed : 1000BASE-T

Turns Ratio : 1CT : 1CT

Number of Ports : 2x8 Ports

Mounting Type : Through Hole

PoE Rating : 30W PoE+

Series : MagJacks (ICMs) 1-1840863-4

Port Configuration : Stacked

Contact Now

Overview of 1-1840863-4 Gigabit PoE+ Magjack:

The 1-1840863-4 is a 2x8 stacked RJ45 connector module featuring integrated magnetics, designed to support 1000BASE-T Ethernet applications with PoE+ (30W) capability. This Magjack combines high-performance signal integrity, robust EMI shielding, and compliance with PoE+ power delivery, making it an excellent solution for Gigabit networking equipment, industrial switches, and IP surveillance devices.

Key Features

Speed Support: 10/100/1000BASE-T (Gigabit Ethernet)
Port Configuration: 2x8 stacked layout for high-density PCB design
PoE Rating: IEEE 802.3at PoE+ up to 30W per port

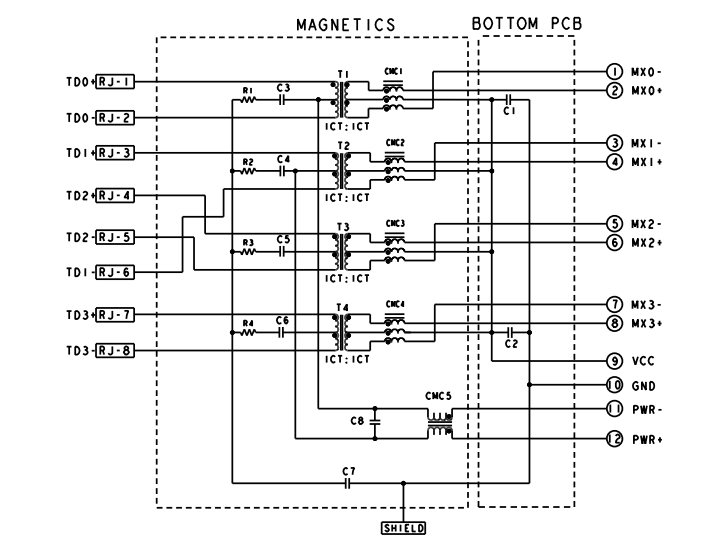

Integrated Magnetics: Supports auto-MDI/MDIX; symmetrical magnetic design
Impedance: 100 Ohms, optimized for Ethernet PHY compatibility
Isolation Voltage: 2250VDC for 60 seconds (rise time 500V/sec)
EMI Tabs: Yes — improves shielding and reduces radiated emissions
Mounting Type: Through-hole for wave soldering (peak 260°C, 10s max)
Operating Temperature: 0°C to +70°C

Mechanical Specifications:

Items	1000BASE-T RJ45 PoE module
Housing Material	Black thermoplastic, UL 94V-0 flame retardant
Shielding	Brass with 0.76μm minimum semi-bright nickel pre-plating
Contact Plating	Phosphor bronze base 0.27μm min nickel underplate 2.54μm min SAC (SnAgCu) solder dip or pure tin tails Palladium-nickel at mating interface with 2.54μm matte tin finish
LED Construction	Diffused epoxy lens with carbon steel frame
RJ45 Cavity	Conforms to FCC Part 68 Subpart F
LED Indicators	Dual LED (Green/Yellow) per port
Green LED	565 nm, 2.2V typical @ 20mA
Yellow LED	588 nm, 2.2V typical @ 20mA
Operating Temperature	0°C - +70°C
RoHS Compliant	YES

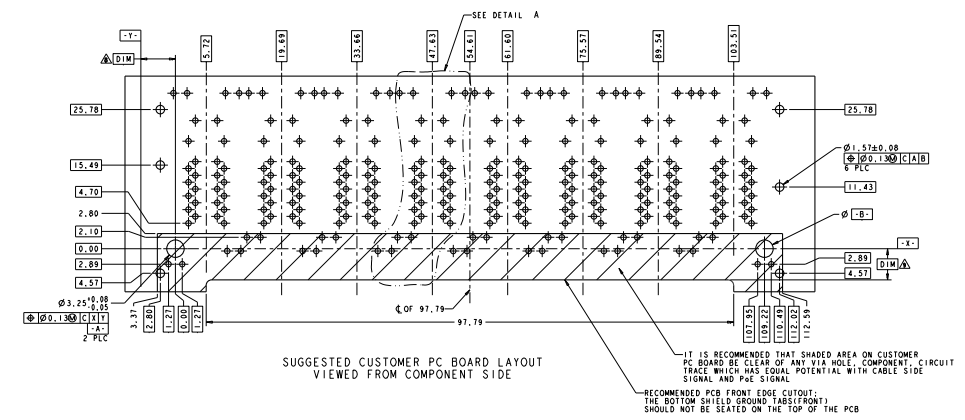

1-1840863-4 Stacked PoE+ Magjack Datasheet
