1-1840326-7 2x6 Gigabit RJ45 Connector with Integrated Magnetics & LEDs

Brand Name : LINK-PP

Model Number : 1-1840326-7

Certification : RoHS

Place of Origin : China

MOQ : 10pcs

Price : $3-$5.5

Payment Terms : T/T, L/C, Western Union

Supply Ability : 600K/Month

Delivery Time : 3-5 days

Packaging Details : Tape & Reel (TR)

Product Name : Stacked Gigabit 2x6 RJ45 Connector

Part Number : 1-1840326-7

Port Configuration : 2x6 ( stacked configuration)

Mounting Type : Through-Hole

Orientation : Right Angle (Side Entry)

Shielding : Yes (Fully EMI shielded)

LEDs : With LED Indicators

Speed Rating : 10/100/1000 Base-T

Magnetics : Integrated

Compliance : IEEE 802.3ab, RoHS

Contact Now

The 1-1840326-7 is a high-performance stacked 2x6 RJ45 connector designed for Gigabit Ethernet (10/100/1000Base-T) applications. This connector directly integrates magnetic components such as isolation transformers and common-mode chokes into the housing, simplifying board design and reducing component count. It features LED indicators for each port to display network status and activity, and offers full EMI shielding for enhanced signal integrity. Ideal for high-density applications like Ethernet switches, routers, and network interface cards (NICs), this connector supports reliable data transmission while saving valuable PCB space.

Electrical Specifications

Category Specification
Application 10/100/1000 Base-T Ethernet
Impedance 100 Ohms
Turns Ratio (Chip-Cable) 1:1 (All Four Pairs)
Open Circuit Inductance (OCL) 350μH Min @ 100kHz, 0.1Vrms, 8mA DC Bias (0°C to 70°C, All Four Pairs)
Pair Directionality Bi-Directional (All Four Pairs)

1-1840326-7 Multi Port RJ45 Connector Performance @ 25°C

Parameter Specification
Insertion Loss (LL) -1.0dB Max (0.5MHz to 100MHz)
Return Loss (RL) -12dB Min (0.5MHz to 40MHz)
-10dB Min (40.1MHz to 100MHz)
Crosstalk Attenuation -35dB Min (0.5MHz to 40MHz)
-33dB Min (40.1MHz to 100MHz)
Common Mode Rejection (CMRR) -30dB Min (0.5MHz to 100MHz)
Isolation Voltage 1500Vrms for 60 Seconds (Rise Time: 1000V/sec, All Ports Connected)

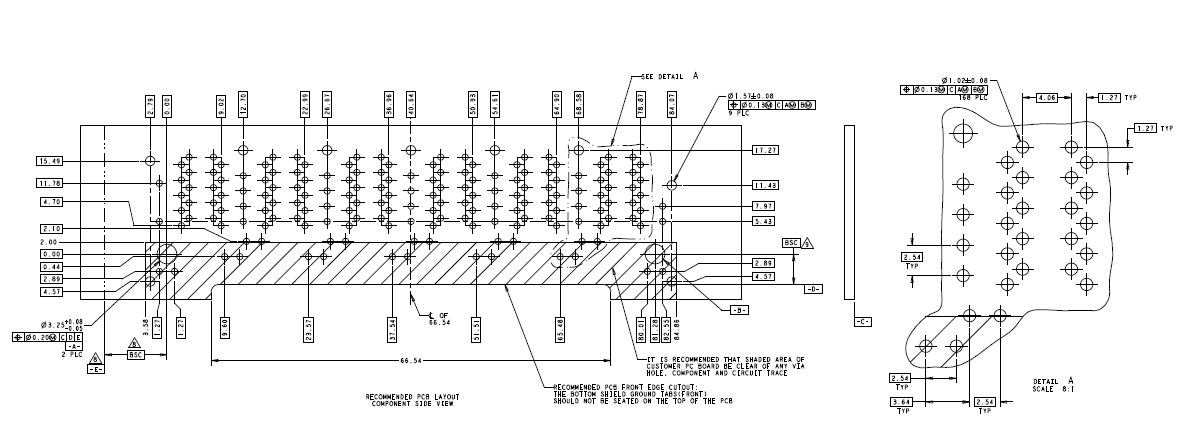

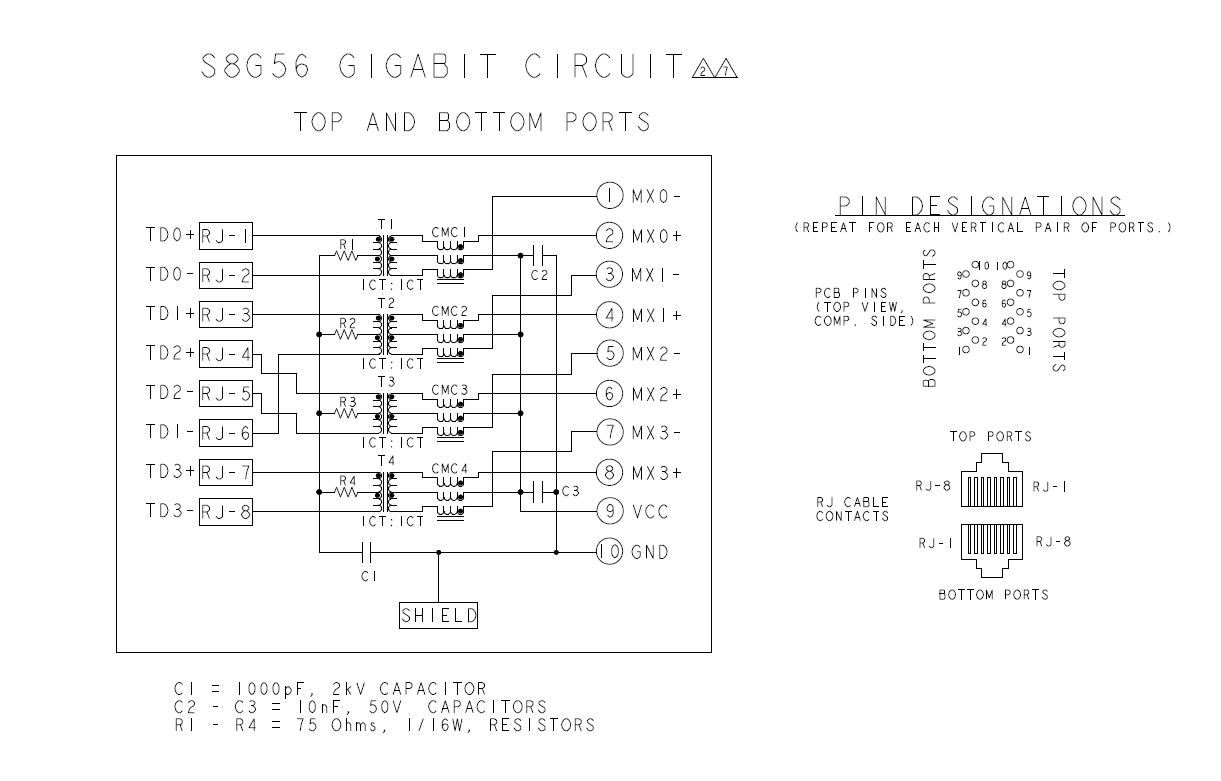

1-1840326-7 RJ45 Connector Datasheet:

1-1840326-7 2x6 Gigabit RJ45 Connector with Integrated Magnetics & LEDs

1-1840326-7 2x6 Gigabit RJ45 Connector with Integrated Magnetics & LEDs

LED Specifications

LED Color Dominant Wavelength (λd) Forward Voltage (VF @ IF = 20mA)
Green 565 nm 1.8–2.8V
Yellow 585 nm 1.8–2.8V
Orange 590 nm 1.8–2.8V
Red 630 nm 1.8–2.8V
Blue 470 nm 2.8–3.3V
White 5500K (color temperature) 2.8–3.3V
