2x4 Ports 1-1840661-7 1000BASE-T Integrated Connector Modules ICMs

Name: 2x4 Ports 118406617 1000BASET Integrated Connector Modules ICMs
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : 1-1840661-7

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : Stock

Packaging Details : 50 pcs/1tray, 20 tray/1 carton, 32*30*31cm, 8KGS (1000pcs)/1 carton

Items : 1-1840661-7 RJ45 Connector With Transformer

Number of Ports : Stacked 2X4

EMI Tabs : Yes

LED Indicator : Left GO, Right GO

Speed : 1000BASE-T

Operating Temperature : 0 ~ +70ºC

Contact Now

1-1840661-7 RJ45 Multi-Port Jack Key Features:

Port Configuration: stacked 2x4 layout.
Ethernet Speed Support: 1000BASE-T (Gigabit Ethernet).
Integrated Magnetics: Improves signal integrity.
LED Indicators: Equipped with GO/GO LEDs for link and activity status.
Mounting Type: Through-hole mount, suitable for robust PCB integration.
EMI Protection: Includes EMI shielding tabs for reduced electromagnetic interference.
Operating Temperature: 0°C to +70°C.
Height Profile: Standard height.
RoHS Compliant: Environmentally safe and lead-free design.
Applications: Switches, routers, LAN servers, and industrial Ethernet devices.

1-1840661-7 Magjack Specifications

RJ45 Connector with 1000 Base-T Integrated Magnetics
Part Number	1-1840661-7
Length	28.12mm
Width	59.07mm
Height	25.50mm
Connector Type	RJ45 Multi-Port Jack
LED Option	GREEN ORANGE / GREEN ORANGE
Latch	TAB UP AND DOWN
Number of Ports	2X4
Transform	INTEGRATED MAGNETICS
PCB Mount Angle	SIDE ENTRY
UL Certification	YES
RoHS Compliant	YES
Housing Material	Thermoplastic
Thermoplastic	UL94V-0
Shield EMI Tabs	WITH
Application	10/100/1000 BASE-T
Temperature Range	0 TO 70℃
Transmission mode	Full duplex
IMPEDANCE	100 OHMS
Turns Ratio	(CHIP: CABLE)1:1 ALL FOUR PAIRS
INDUCTANCE (OCL)	350uH MIN @100kHz, 0.1 VRMS, 8mADC BIAS FROM 0°C TO 70°C
Isolation voltage	2250VDC(MAX)

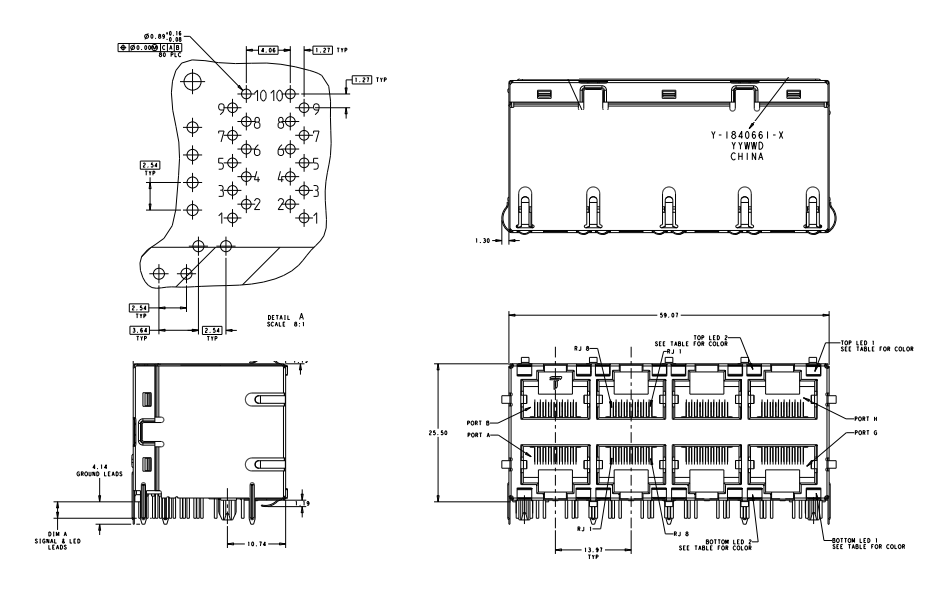

1-1840661-7 Drawing

2x4 Ports 1-1840661-7 1000BASE-T Integrated Connector Modules ICMs

Summary

The MagJack 1-1840661-7 is a high-performance multi-port Integrated Connector Module designed for Gigabit Ethernet applications. It integrates four RJ-45 connectors with transformers and LED indicators in a compact form factor, providing a complete physical layer interface solution. The product features excellent electrical performance, reliable design, and comprehensive LED status indication, making it suitable for various network devices and communication equipment requiring Gigabit Ethernet Magjacks.
