1-6605834-1 Shielded POE RJ45 Connector With Resistor LEDS LPJ16249AZNL

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : 1-6605834-1

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

Configuration : 1x1 Single Port

Gender : Jack (Female)

Tab Direction : Tab Up

Speed : 10/100Base-T POE

LED L / R Color : Green / Green

Mounting Type : Through Hole

PoE : Support Power over Ethernet

Project Application : Industrial Switches

Contact Now

1-6605834-1 Magnetic RJ45 Connector Specifications

Category Specification
Part Number 1-6605834-1
Product Type Magnetic RJ45 Jack (Integrated Magnetics)
Connector Type RJ45 Jack (Female), 1x1 Configuration
Application 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Performance Category Category 5
USOC Code RJ45
Position/Contact per Port 8P8C (8 Positions, 8 Contacts)
Number of Ports 1
Number of Rows 1
Number of Cores per Jack 6
Mounting Type Through Hole (THT)
Mounting Angle Right Angle (90°)
Termination Style Solder
Tab Direction Tab Up
Shielding Shielded with EMI Fingers
Features Board Lock
LEDs Green (Left) / Green (Right)
Color Black
Height Above Board 0.555" (14.10 mm)
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Plating Thickness 50.0 µin (1.27 µm)
Shield Material Brass
Housing Material Polyethylene Terephthalate (PET), Polyester
Flammability Rating UL 94 V-0
Operating Temperature 0°C to +70°C
Packaging Tray
Part Status Active

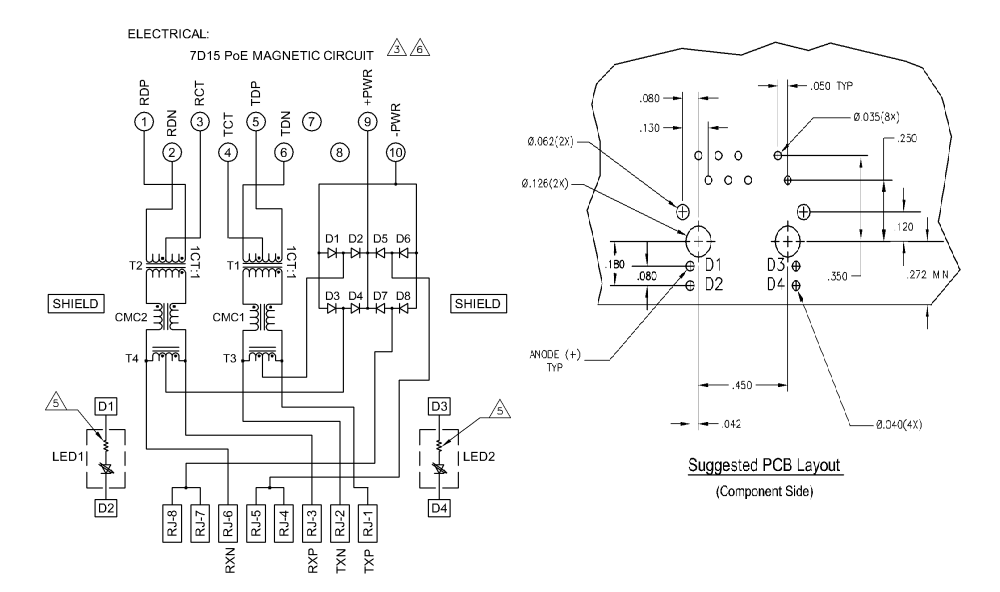

1-6605834-1 Datasheet

1-6605834-1 Shielded POE RJ45 Connector With Resistor LEDS LPJ16249AZNL

1-6605834-1 PoE RJ45 Connector Material Specifications

  • Housing Material: Thermoplastic, Black, UL 94V-0 Flammability Rating
  • Contact Material: Phosphor Bronze, Gold Plated
  • Shielding Material: Copper Alloy, Nickel Plated

Operating Conditions

  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -40°C to +85°C

Soldering Specifications

  • Wave Soldering Temperature: 260°C, Max 10 Seconds
  • Reflow Soldering Temperature: 245°C, Max 5 Seconds
